Precision Machining for Millimeter-Wave RF Modules
We provide high-precision machining and integration services for millimeter-wave RF modules, supporting complex waveguide structures, tight tolerance interfaces, and stable RF performance across mmWave and THz frequencies. Our capability bridges discrete components and functional RF assemblies.
Engineering Capabilities
Ultra-tight tolerance control for mmWave critical dimensions.
Precise alignment of split-block and mating interfaces.
Waveguide-aware machining with understanding of RF-critical geometries.
Stable surface quality to ensure low loss and repeatable RF performance.
Complex internal cavities and waveguide features via CNC and EDM .

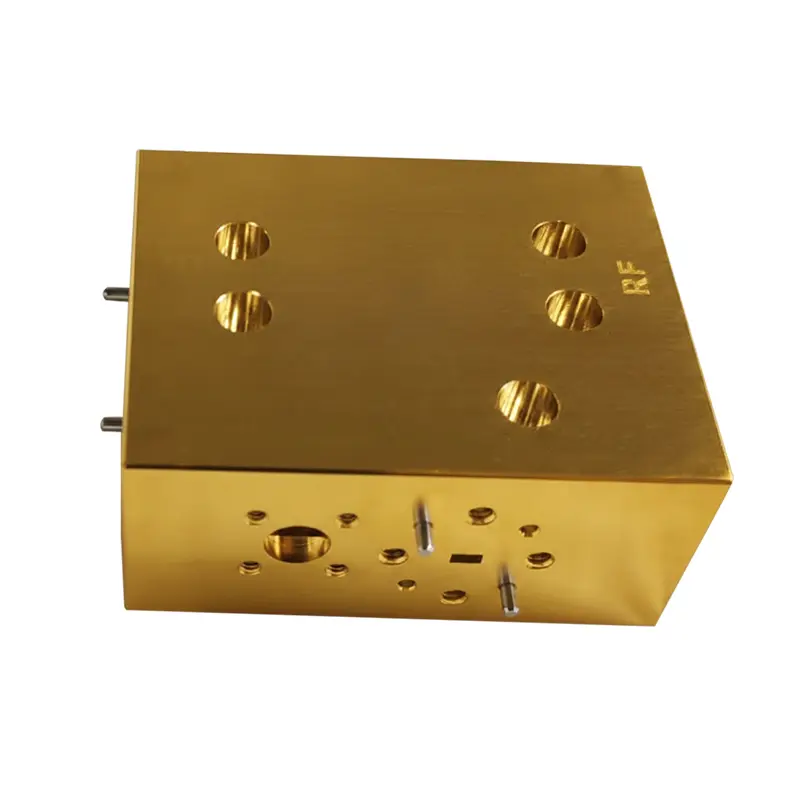

Typical RF Module Housings & Tooling
Passive RF module housings (power dividers, filters, couplers).
Active RF module housings (mixers, amplifiers, multipliers).
Frequency control modules (synthesizers, phase shifters, attenuators).
Precision corner reflector and calibration structures.
Custom waveguide fixtures, alignment and test tooling.
Capability Snapshot
Min tolerance: ±0.003mm.
Minimum milling tool size: φ0.06 mm.
Surface roughness: Ra 0.3 – Ra 0.8.
Materials: Aluminum, Copper, Brass, Stainless Steel (customized).
Surface finishes: Gold plating, silver plating, custom finishes
Note: The images are provided solely to demonstrate machining capability and are not for commercial sale. All customer designs are strictly confidential.
Design for Manufacturability (DFM) Support
Our DFM support focuses on machining feasibility and practical optimization for RF modules.
We analyze design details from a manufacturing perspective—including waveguide geometry, split-block structures, wall thickness, tolerances, and assembly interfaces—to ensure the design can be machined reliably and repeatedly.
Based on this analysis, we provide engineering-level suggestions on how to adjust structures to:
Improve RF performance by maintaining stable waveguide paths and alignment accuracy;
Enhance mechanical strength and long-term stability;
Reduce machining complexity and overall production cost.
By aligning design intent with real machining constraints, we help bridge the gap between prototype and scalable production, enabling smoother transition from one-off samples to stable batch manufacturing.
Manufacturing Excellence & Technical Highlights for RF Module Housings

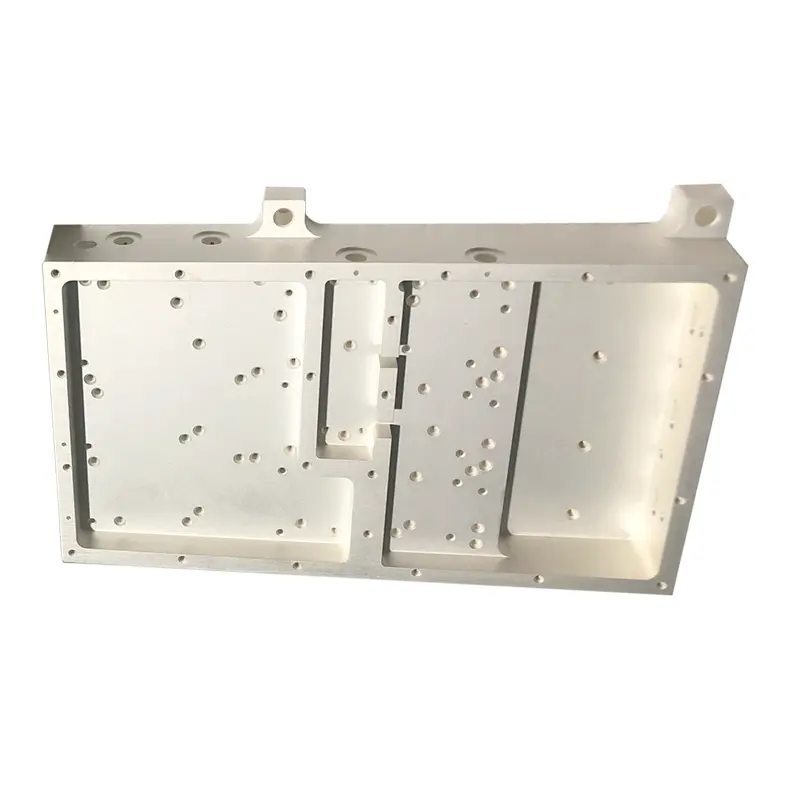

Complex Multi-Cavity Milling & Isolation: Millimeter-wave and active RF modules often require intricate internal geometries with dozens of isolated cavities. Utilizing advanced multi-axis CNC machining, we successfully mill deep, narrow slots and complex internal walls down to±0.005mm tolerances. This precise mechanical isolation effectively prevents cross-talk and electromagnetic interference (EMI/RFI) between sensitive active components, ensuring stable multi-channel RF performance.
Micro-Tooling & High Surface Integrity: To achieve clean, sharp internal corners inside microwave module housings, we support minimum milling tool sizes down to φ0.06. Paired with rigorous tool path optimization, we maintain a flawless surface roughness of Ra 0.3 – Ra 0.8. This high surface finish minimizes skin effect losses at THz frequencies and ensures gap-free alignment for split-block assemblies.
Premium Materials & Specialized Plating: Our facility specializes in machining high-conductivity materials such as Aluminum (6061-T6), Oxygen-Free Copper, Brass and C14500 Tellurium Copper. To guarantee corrosion resistance and superior electrical contact, we offer strictly monitored surface treatments including high-purity Gold Plating, Silver Plating, and Electroless Nickel Plating, completely eliminating micro-burrs and ensuring excellent solderability.
Strict Quality Inspection & Environmental Standards: Every machined RF housing undergoes rigorous mechanical profiling and coordinate-measuring machine (CMM) inspection to verify absolute dimensional consistency. Our customized alignment fixtures and precision-drilled reference holes ensure that all mating interfaces, feedthroughs, and RF connectors fit seamlessly, making our housings fully compliant with high-reliability aerospace, telecom, and defense standards.

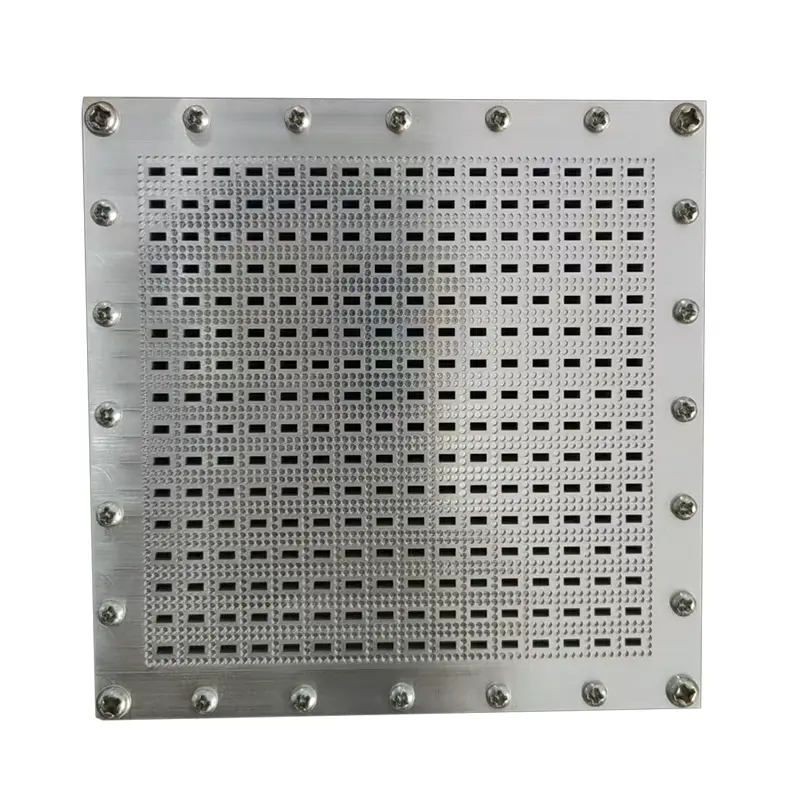

Specialized Manufacturing for Waveguide Slotted Array Antennas
Beyond standard housing and cavities, we offer high-precision turnkey CNC machining services for custom Waveguide Slotted Array Antennas. Utilizing advanced multi-axis CNC milling and high-precision wire EDM, we maintain strict linear and positioning tolerances down to ±0.01mm to ±0.02mm for every radiating slot. Thin walls can be as thin as 0.8 mm. Our proprietary micro-deburring process ensures that all slot edges are perfectly sharp and burr-free, preventing phase distortion and ensuring optimal radiation pattern symmetry for high-frequency millimeter-wave and terahertz applications.
